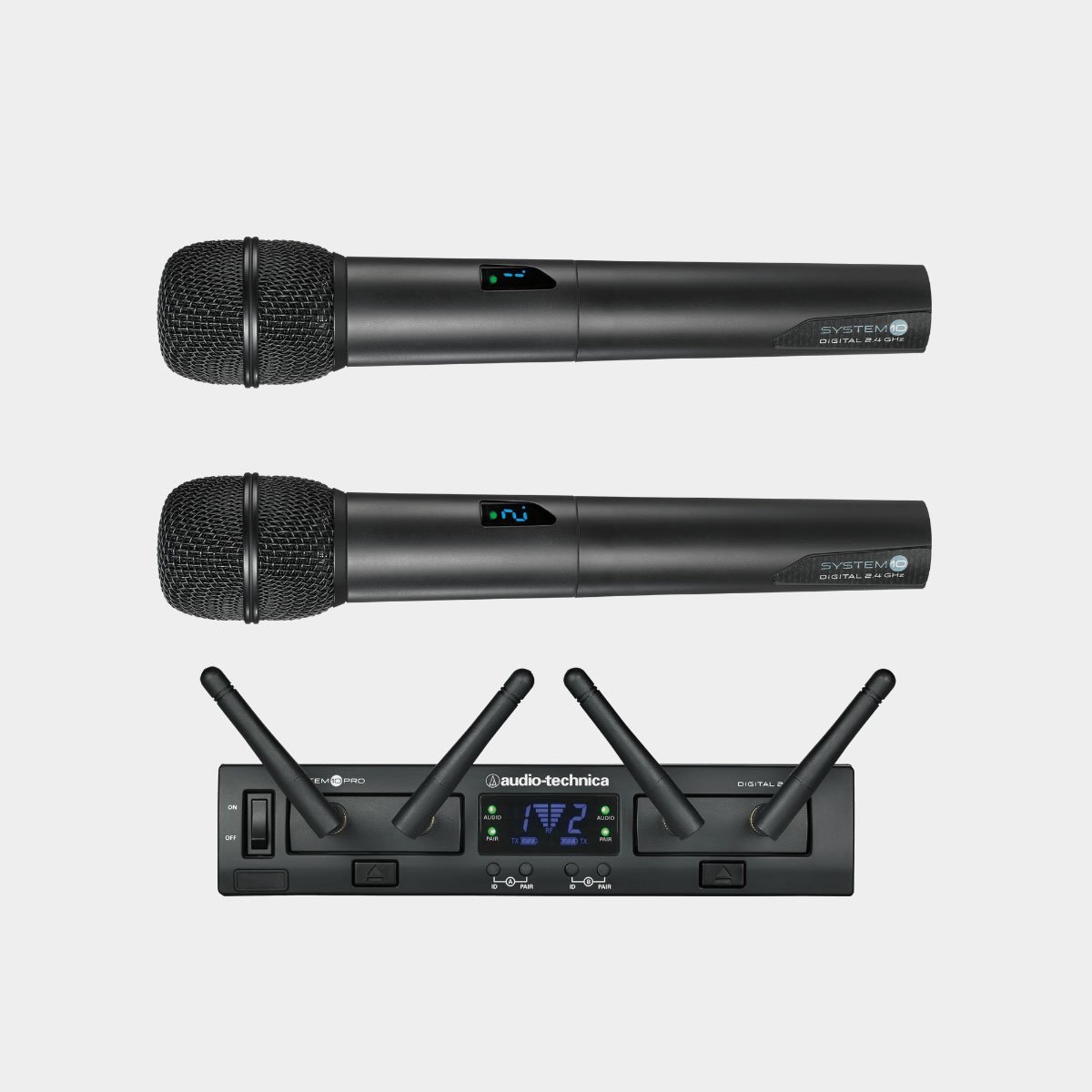

The Audio-Technica ATW-1322 is a System 10 PRO dual handheld wireless system. Place receiver units closer to the performance area while keeping the receiver chassis in the equipment rack. Core features include 2.4 GHz digital operation, 24-bit/48 kHz audio and 2 handheld transmitters.
The system separates the performer from the audio connection at the receiver, allowing movement while the receiver feeds a mixer, interface or sound system. Its transmitter format determines the application: handheld operation for vocals and presentations, or a bodypack arrangement for a compatible microphone or instrument connection. The supplied components for this model are identified in the feature list.
Diversity reception gives the receiver more than one opportunity to maintain a useful radio signal. Depending on the series, that can involve antenna paths or multiple digital diversity methods. Channel selection, scanning or automatic frequency management simplifies preparation, while receiver metering and output controls help with integration into the rest of the audio system.
Digital operation in the 2.4 GHz band supports a straightforward wireless setup with the series’ automatic management functions. Audio outputs at the receiver make it easy to incorporate the system into conventional sound reinforcement equipment. Transmitter battery power and the supplied mounting accessories support repeated use across rehearsals, events and presentations.
Features:
- 2.4 GHz digital operation.
- 24-bit/48 kHz audio.
- 2 handheld transmitters.

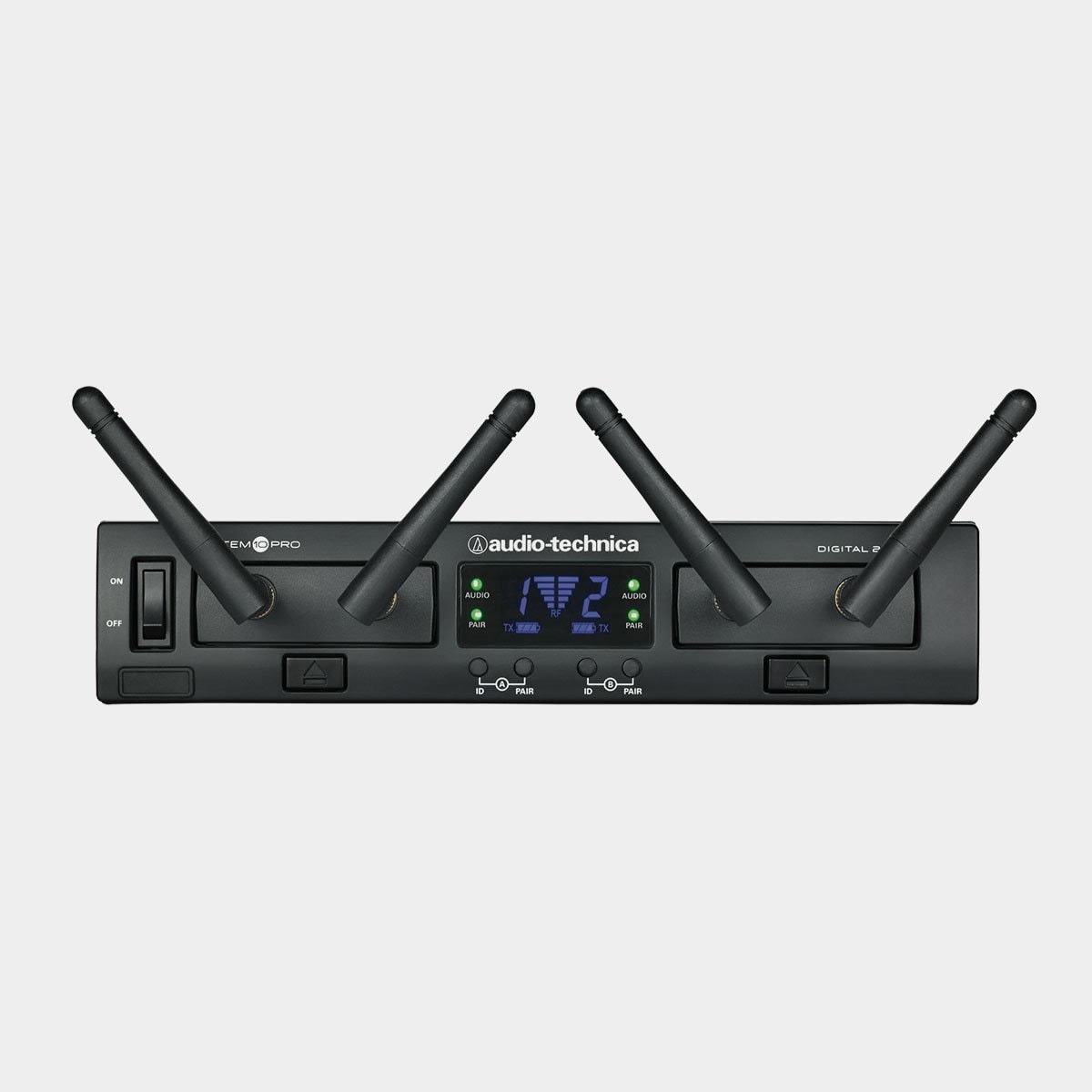

- Rack-mount receiver chassis.
- Remotely mountable receiver units.
- Frequency, time and space diversity.
- Automatic frequency selection.
- Receiver modules dock in the chassis or operate remotely over Ethernet cable.
- Up to 100 metres between chassis and remote receiver unit.
- Balanced XLR and unbalanced jack audio outputs.
- Included handheld transmitters use two AA batteries.
