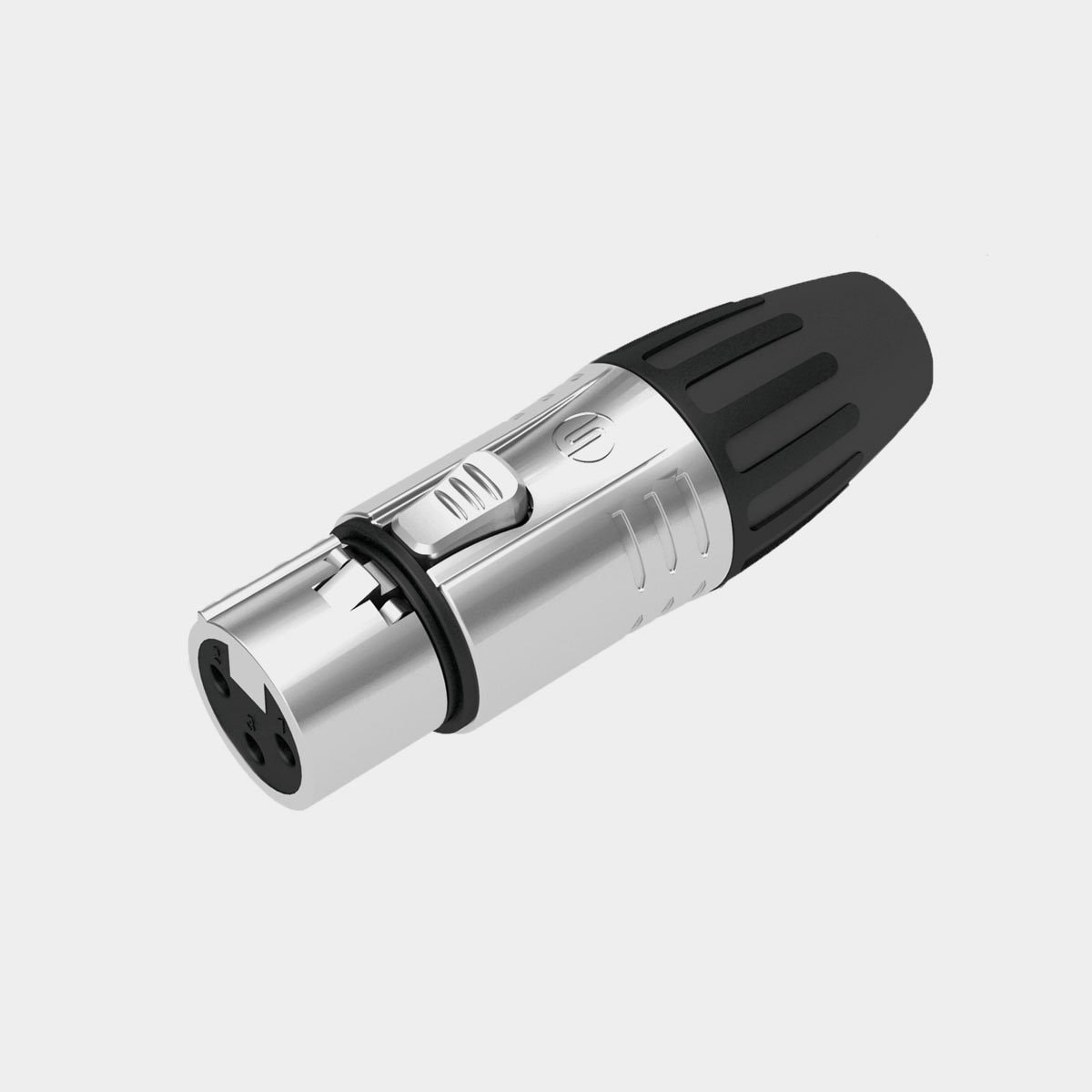

The Seetronic SCMF3 is a three-pin female XLR cable connector. Build or service compatible audio connections with a connector matched to your cable and equipment. The stated contact format and construction help you select the correct part for stage, studio or installed systems. Core features include Three-contact XLR format, Metal housing and Cable strain relief.
The connector provides a defined termination point for a compatible audio cable or equipment panel. Its contact format, gender and mounting style determine the connection it makes, while the housing and contact material support a dependable mechanical and electrical interface. The specifications below identify the particular version for cable assembly, replacement or installation work.
The cable-mount format allows a lead to be assembled around the required length and application. The termination and strain-relief arrangement help support the cable at the connector, reducing the amount of mechanical pull carried directly by the electrical joints. Cable diameter and conductor compatibility remain part of choosing the correct part.
Features:
- Three-contact XLR format.
- Metal housing.
- Cable strain relief.
- Solder cable termination.
- Connection Type: XLR.
- Capacitance between contacts: ≤ 4 pF.
- Contact resistance: ≤ 3 mΩ.
- Dielectric strength: 1.5 kV DC.
- Insulation resistance: > 10 GΩ (initial).
- Rated current per contact: 16 A.
- Rated voltage: < 50 V.
- Cable O.D.: Black Strain relief: 3.5-6 mm White Strain relief: 6-8 mm.
- Service life: > 1000 mating cycles.
- Cable size: Max. 2.5 mm² Max. 14 AWG.
- Locking device: Latch lock.
- Contacts: Cu alloy.
- Contact plating: Ag.
- Housing: Zinc alloy.
- Housing plating: Cr.
- Strain relief: POM.
- Flame-retardant grade: UL 94 HB.
- Protection class: IP40.
- Temperature range: -30°C ~ +80°C.
