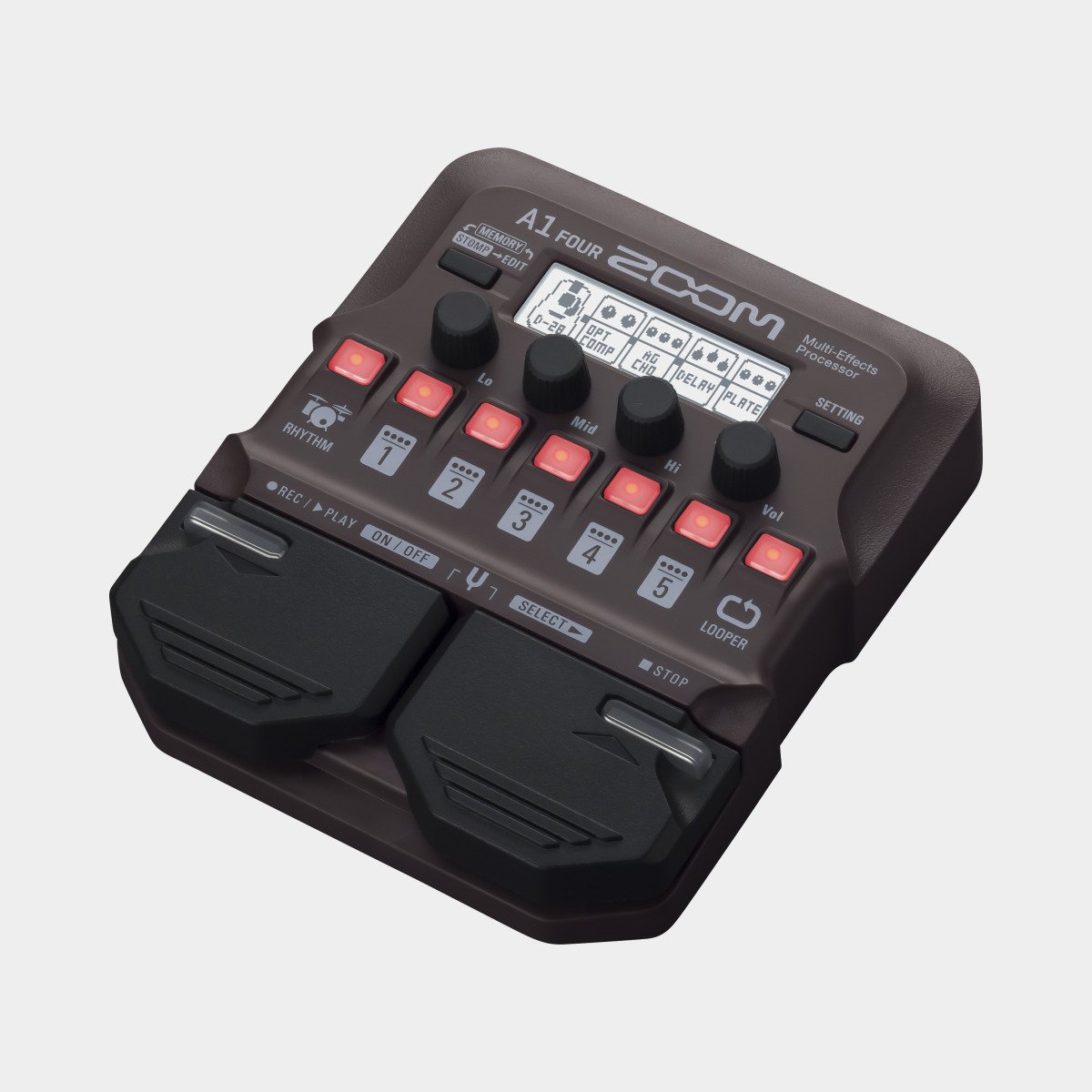

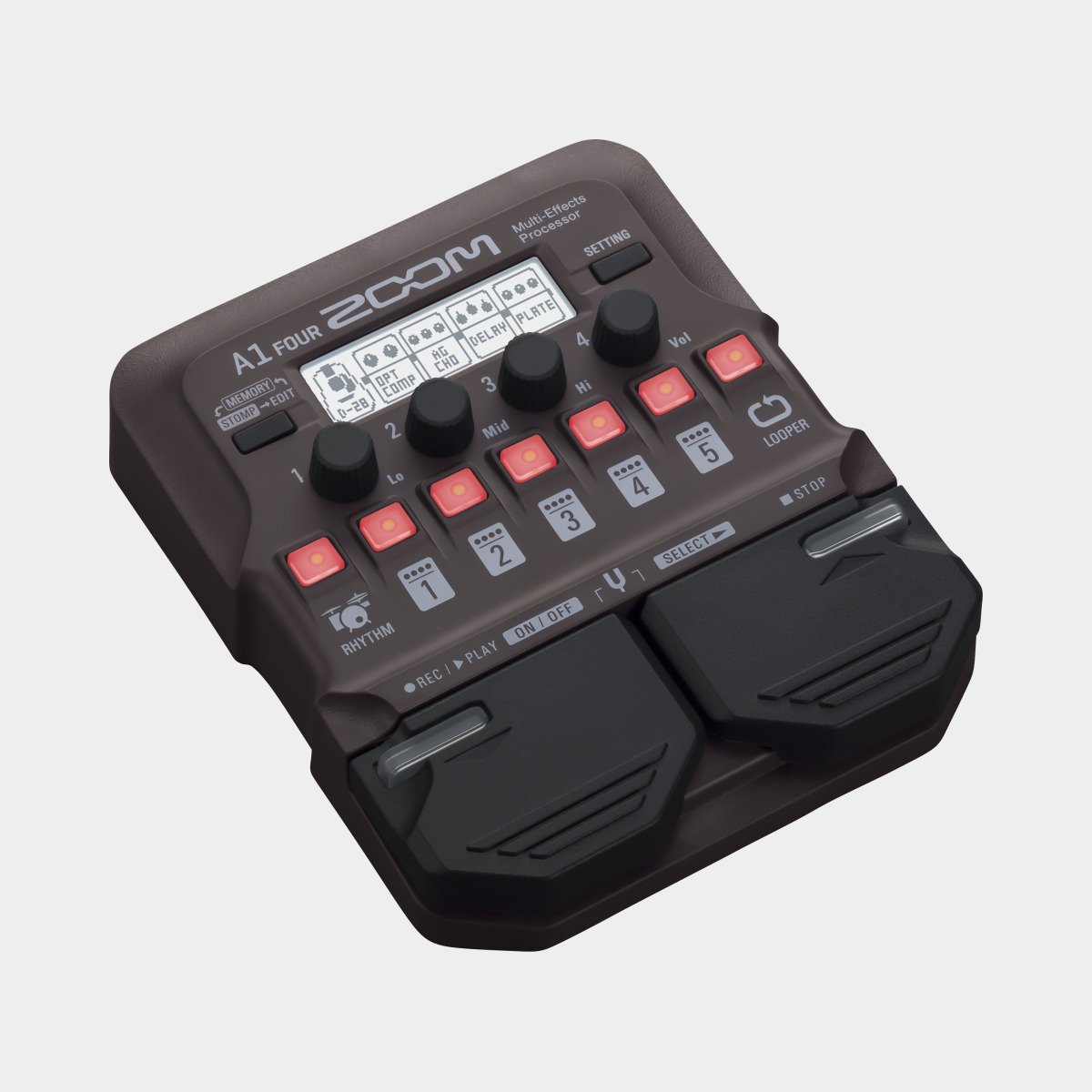

The Zoom A1 FOUR brings specialized multi-effects processing to acoustic guitarists and acoustic instrument players who need maximum portability without sacrificing professional tone control. Specially engineered for acoustic guitars, saxophones, trumpets, violins, harmonicas, and upright basses, it offers targeted modeling algorithms, feedback management, and dynamic control in a compact, travel-friendly unit.
Tailored Processing for Acoustic & Wind Instruments
Packed with over 80 acoustic effects, the A1 FOUR delivers custom dynamics, spatial delays, lush modulations, and natural reverbs tuned specifically for unamplified acoustic profiles. It features 15 acoustic guitar body modeling presets (including Dreadnought, Parlor, and Nylon String shapes) designed to restore natural wood resonance and depth to thin piezo pickup signals. Wind, brass, and string players can tap into custom algorithms that smooth out harsh transients, adjust harmonic balance, or add rich octave layering.

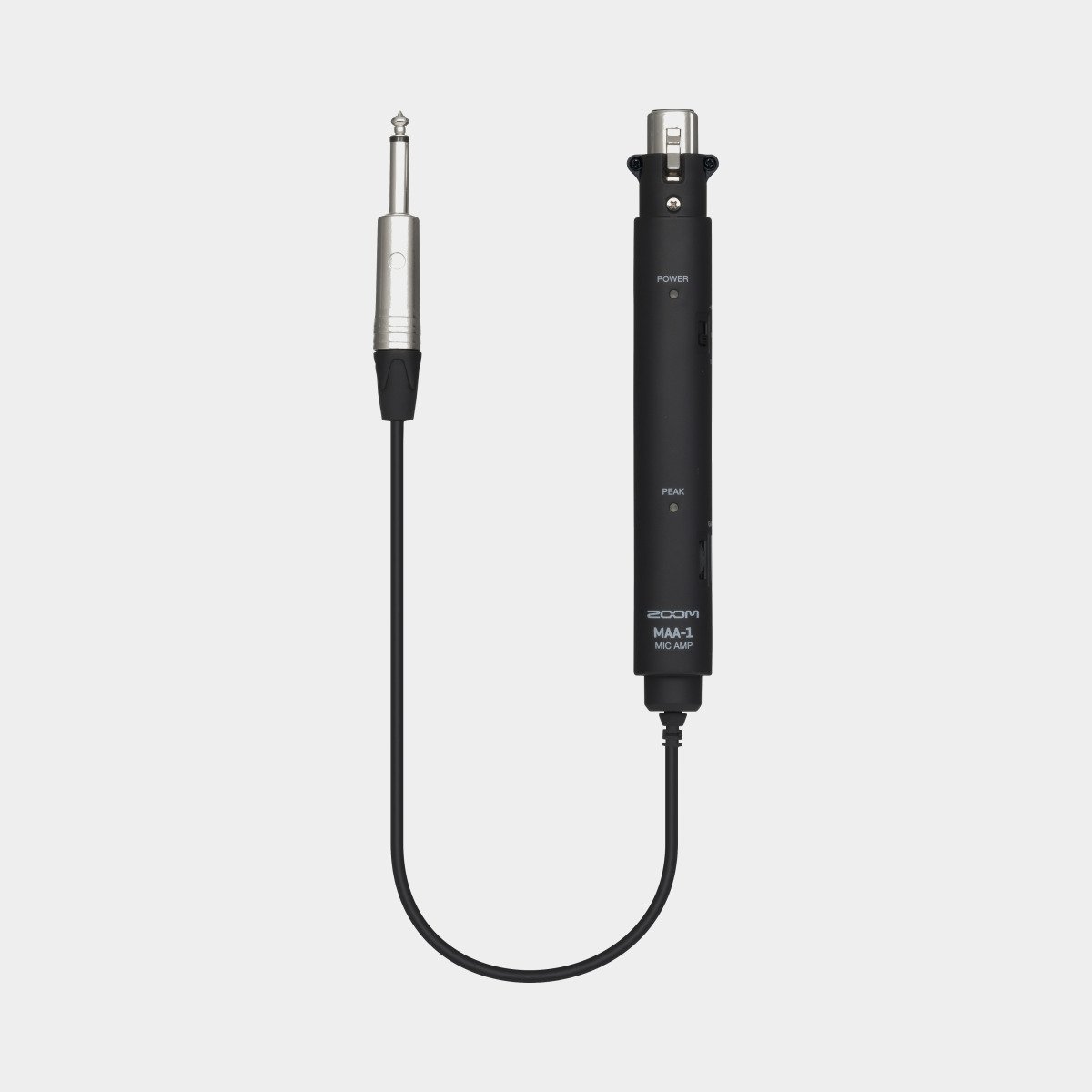

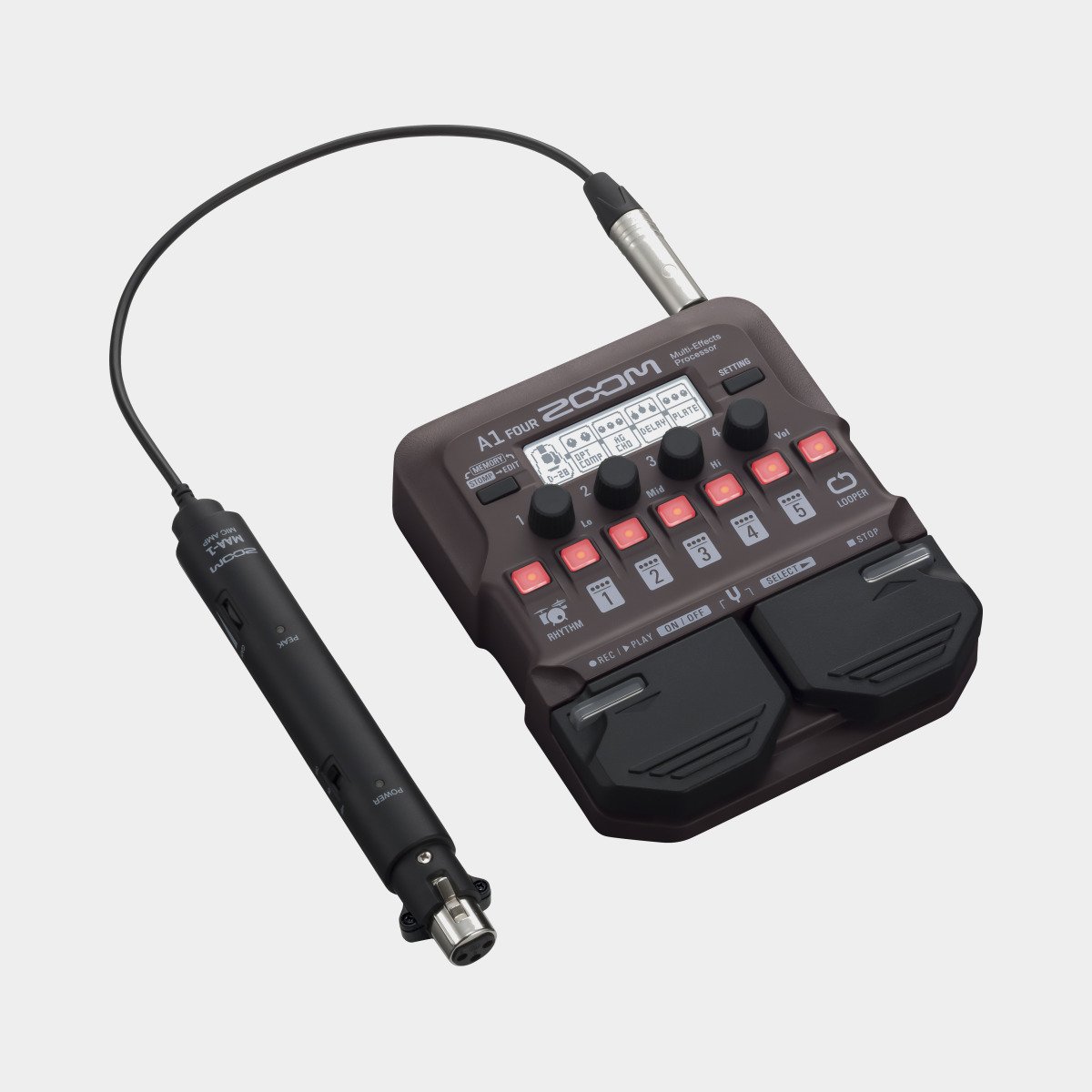

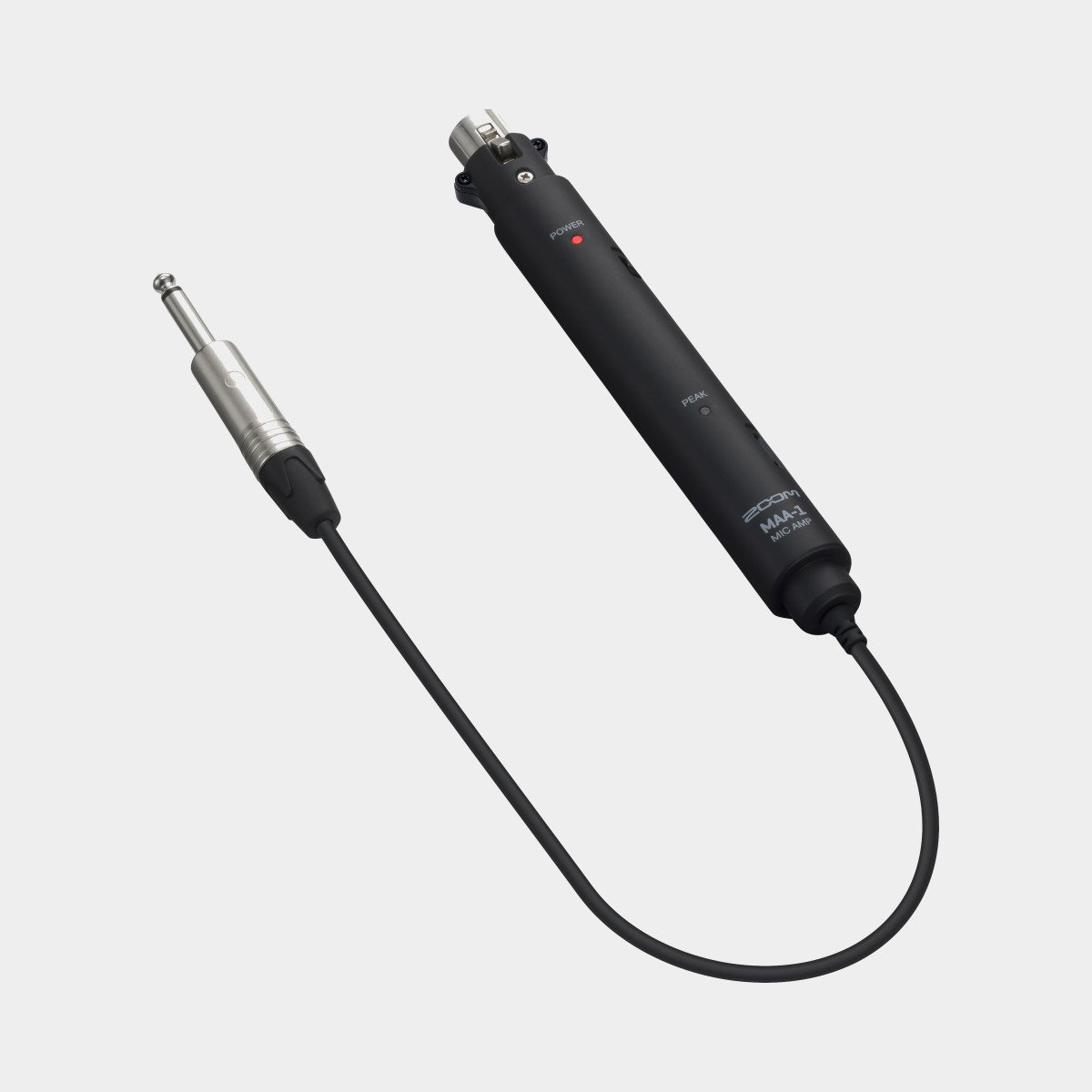

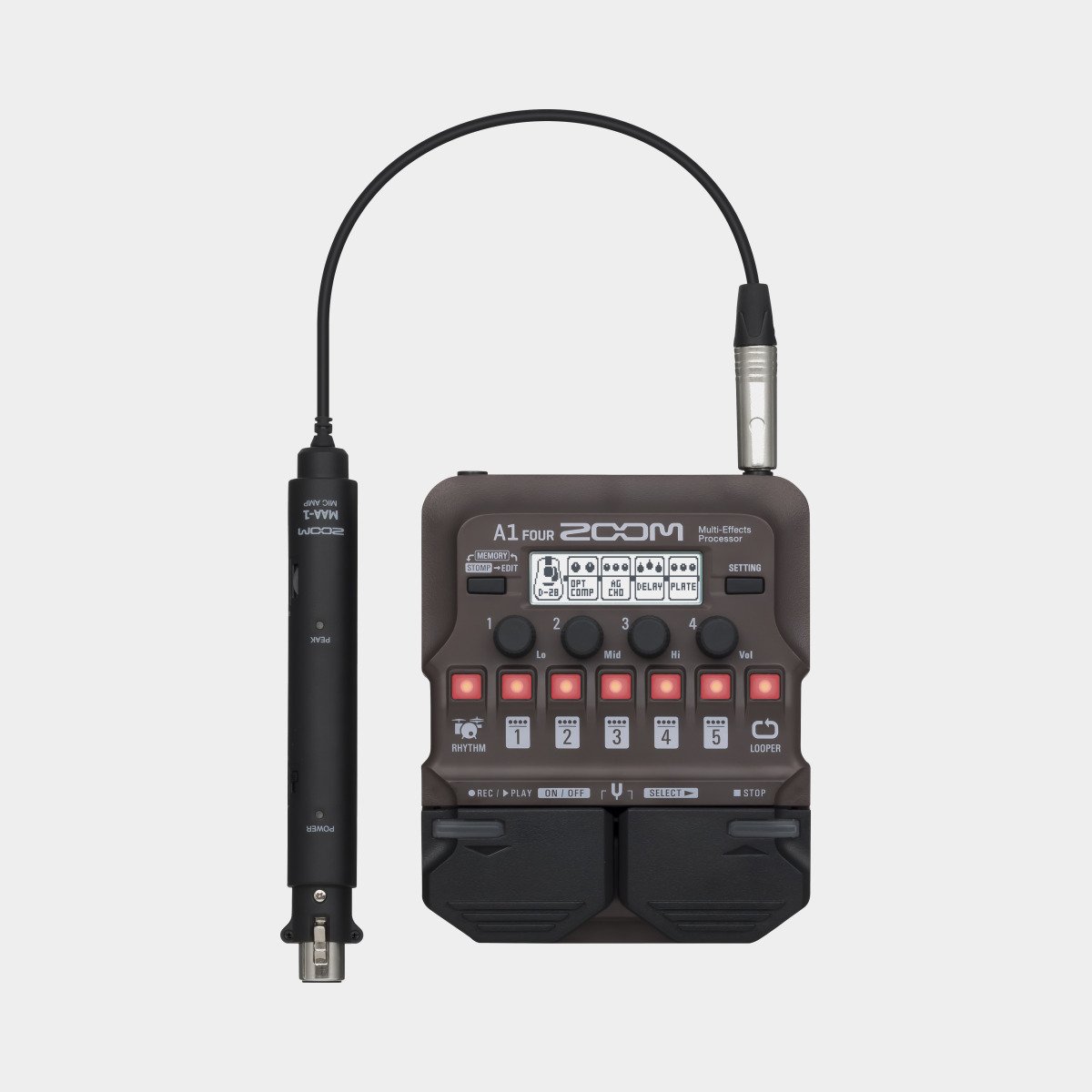

Included MAA-1 Mic Adapter for Dynamic & Condenser Mics
To accommodate acoustic instruments that do not use traditional pickup outputs, the A1 FOUR comes bundled with the Zoom MAA-1 Mic Adapter. This inline preamp module connects directly to standard XLR microphone cables, featuring adjustable gain control and switchable +48V phantom power for condenser microphones. Whether miking a saxophone bell, a violin body, or an acoustic guitar top, the signal path remains clean, warm, and highly transparent.
Stage Utilities: Anti-Feedback Filter, Looper & Rhythms
Live acoustic performances require quick control. The A1 FOUR includes an advanced Anti-Feedback filter that actively detects and cuts problem resonance points before they trigger distracting feedback on stage. For solo songwriting and practice, the onboard 30-second Phrase Looper pairs seamlessly with an acoustic rhythm guide containing 68 drum patterns—including cajon, shaker, and traditional percussion tracks across multiple time signatures.
Desktop Management via Zoom Guitar Lab
Using the Micro-USB connectivity, you can hook the unit up to a Mac or PC to access the free Zoom Guitar Lab software. This clean desktop application allows you to back up patch libraries, tweak parameters on a larger screen, and download additional acoustic effects, custom presets, and firmware updates directly into your unit.
Key Technical Specifications
- Simultaneous Processing: Up to 5 custom FX blocks
- User Presets: 50 patches (10 banks of 5 patches)
- Processing Specs: 24-bit A/D/A conversion with 128x oversampling
- Included Accessory: MAA-1 Mic Adapter (XLR input with +48V phantom power)

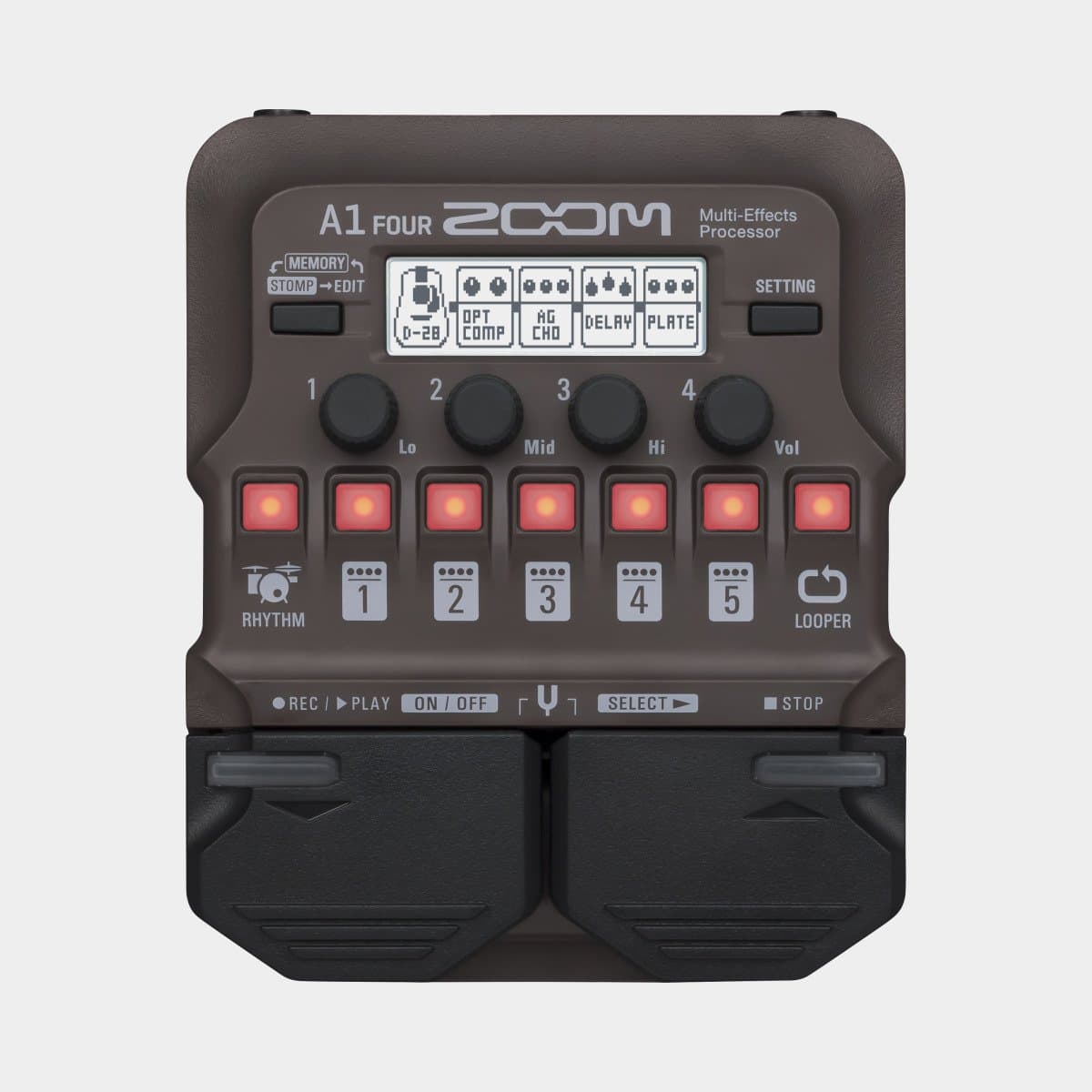

- Hardware Interface: 4 x Edit knobs, backlit numeric patch switches, graphic LCD screen, dual heavy-duty footswitches

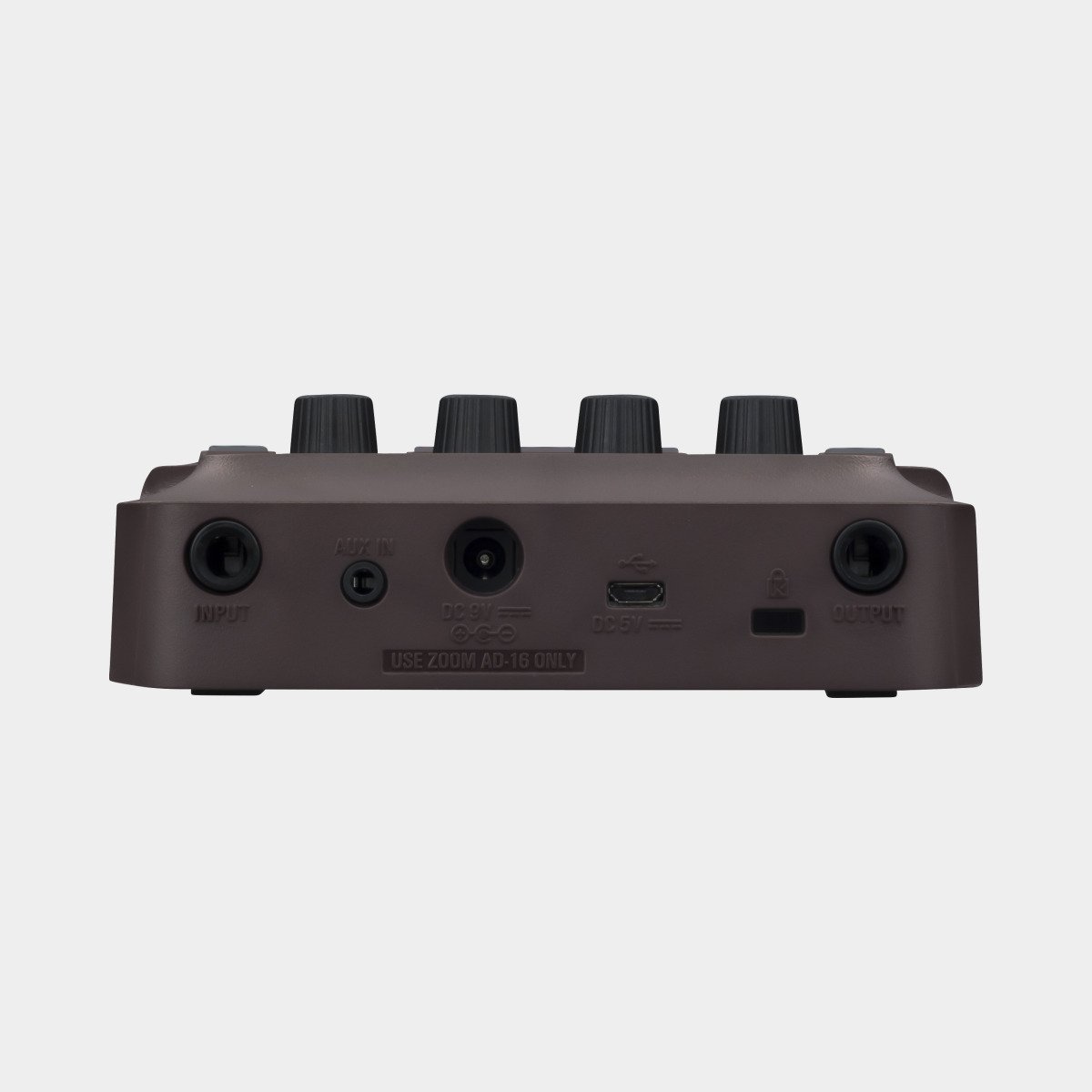

- Analog Input/Output: 1 x 1/4″ Standard Instrument input, 1 x 1/4″ Line/Headphones output, 1 x 3.5mm Stereo Aux input
- Digital Port: Micro-USB for Zoom Guitar Lab management and system firmware updates
- Power Configurations: Main unit: 4 x AA batteries (up to 18 hours operating time), 9V DC Adapter (Zoom AD-16 sold separately), or USB bus power. MAA-1 Adapter: 2 x AA batteries
