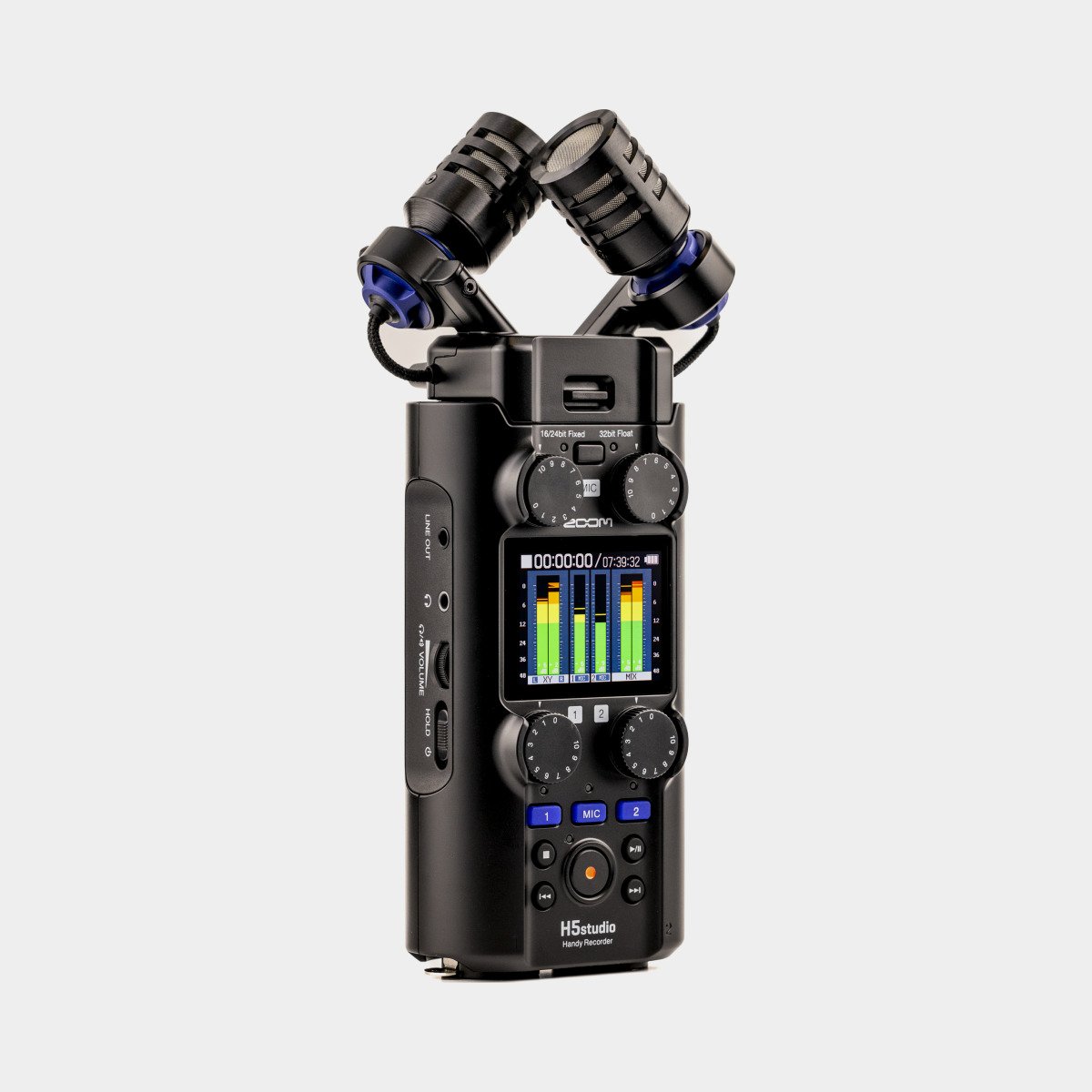

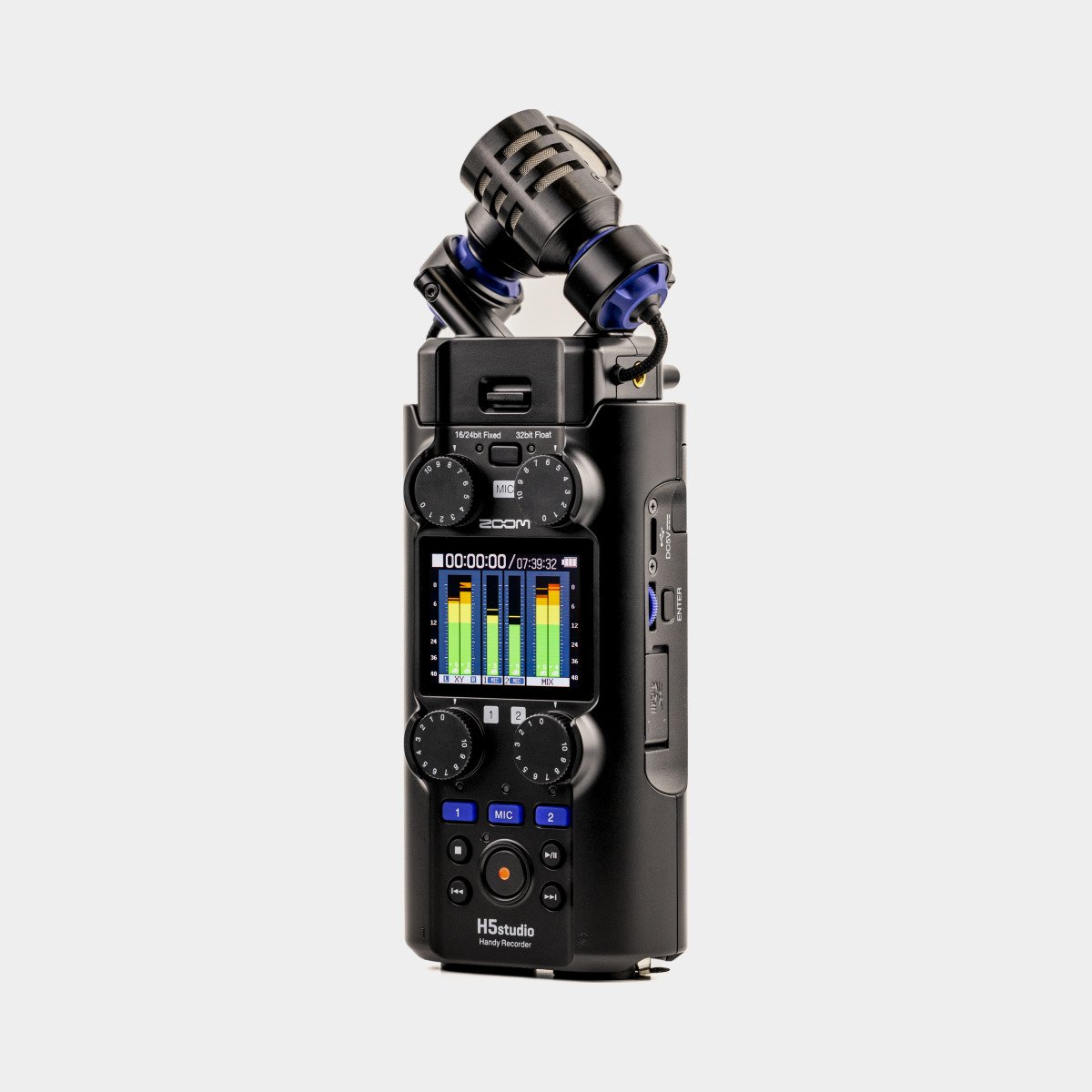

The Zoom H5studio sets a new standard for portable field studios, giving musicians, audio engineers, and filmmakers uncompromised desktop-class audio performance anywhere. By merging the foolproof safety of 32-bit float technology with tactile, dedicated physical gain knobs, it offers the ultimate balance of hands-on control and absolute clip protection.

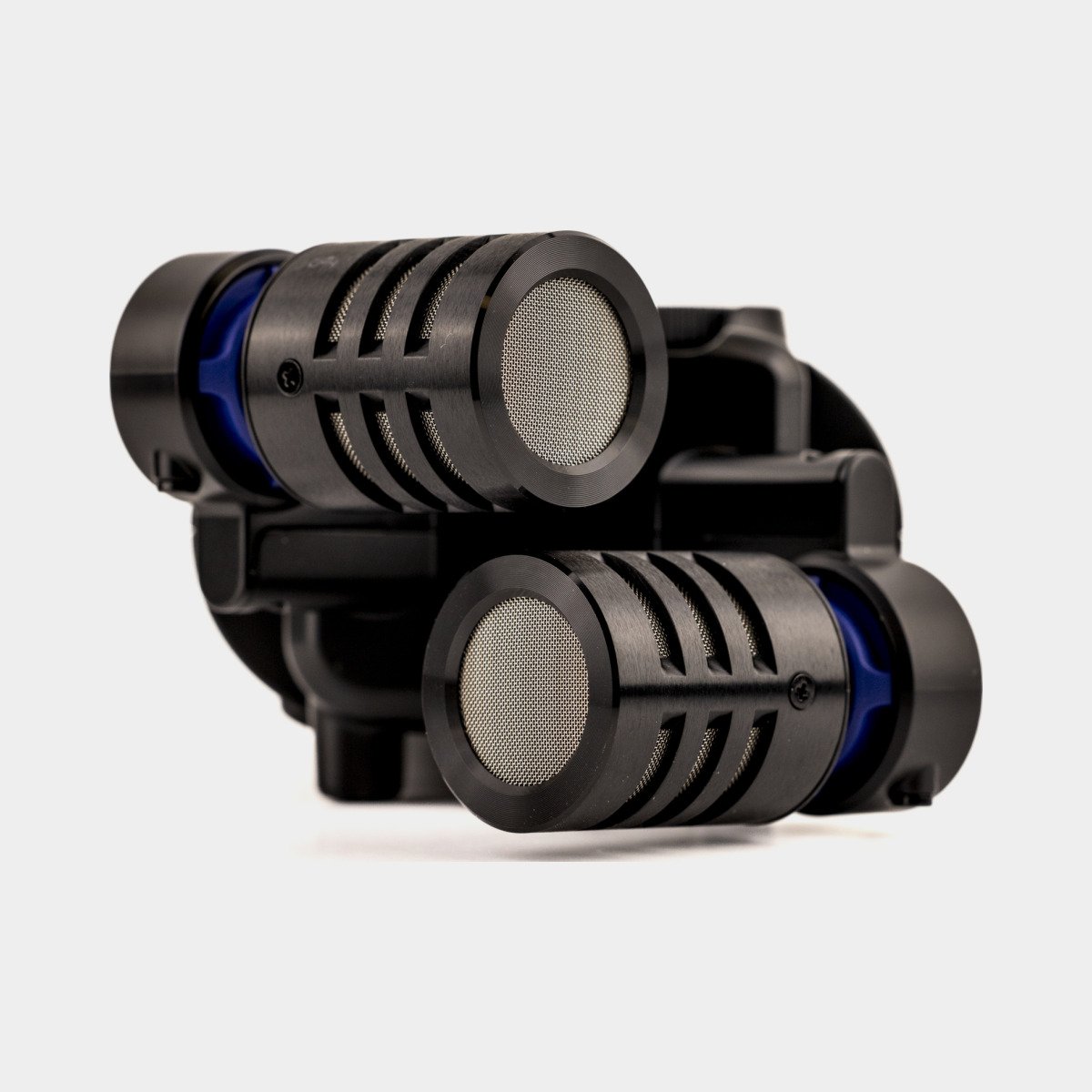

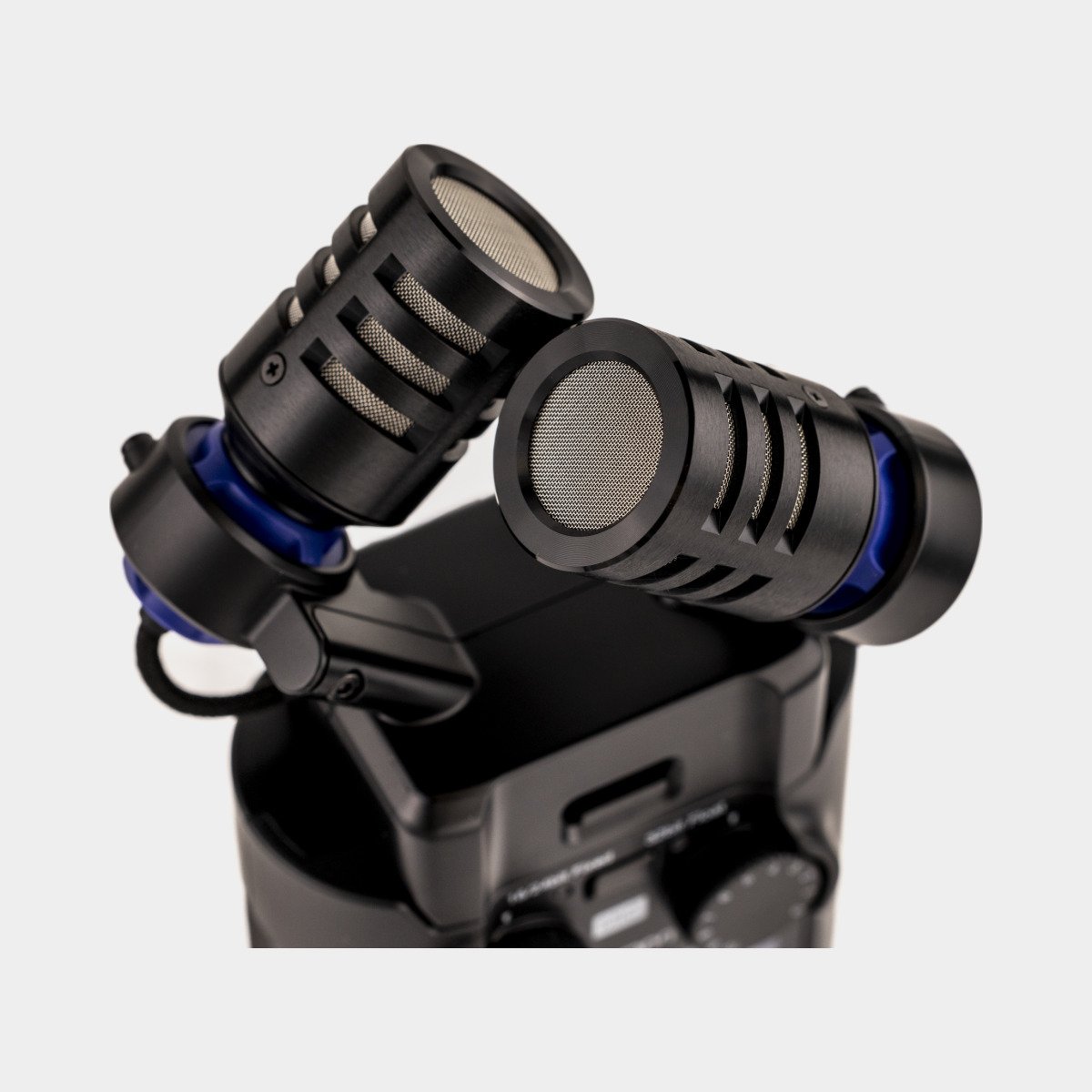

Oversized 19.4mm XY Stereo Microphones
The first thing you will notice about the H5studio is its massive, newly engineered X/Y stereo microphone array. Featuring large 19.4mm condenser capsules—the largest ever fitted to a standard Zoom handy recorder—this device delivers a much wider frequency response, incredible spatial depth, and a high sensitivity profile. Capable of handling intense audio environments up to 140 dB SPL, it captures everything from crisp dialogue whispers to thunderous live concert stacks cleanly without distortion.
F-Series Studio Preamps & Dual A/D Converters
Under the hood, the H5studio inherits the legendary, ultra-low-noise microphone preamplifiers found in Zoom’s high-end F-series field recorders. Boasting an exceptional -127 dBu EIN and an expansive 132 dB dynamic range, it paired with dual A/D converters to completely eliminate electronic hiss. The 32-bit float architecture provides an infinite safety net against sudden volume spikes, while the hardware rotary dials allow you to comfortably tweak your levels on the fly.
Flexible 6-Track Workflow & Locking Inputs

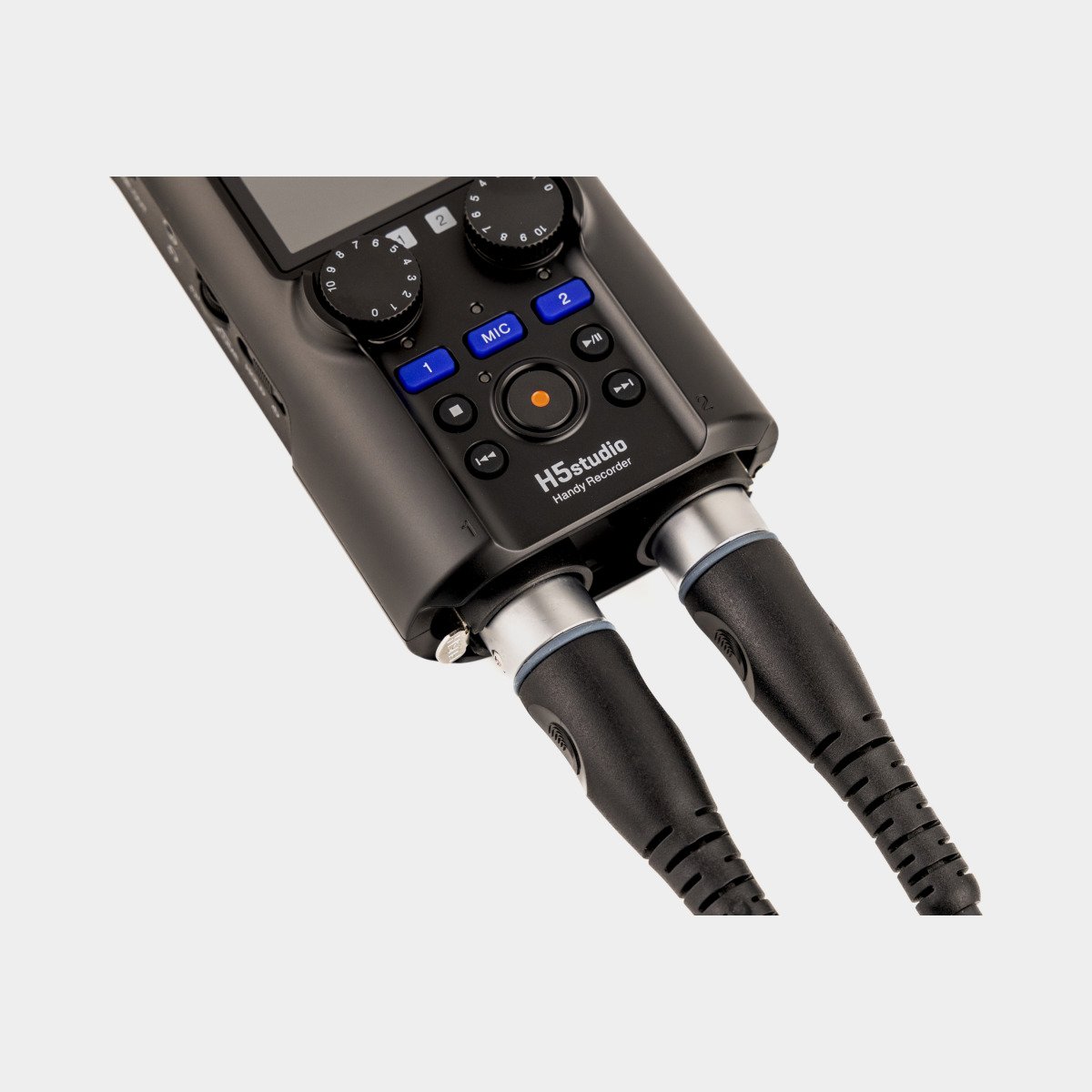

The H5studio supports simultaneous recording of up to six tracks (four isolated tracks plus a stereo bounce) at high-resolution sample rates up to 192 kHz. It features 2 lockable XLR/TRS combo inputs that natively support +48V phantom power for studio condensers, alongside a 3.5mm auxiliary stereo jack with plug-in power for compact lavaliers. Built-in RF shielding safeguards your signal path against pesky cellular or Wi-Fi router interference in the field.
Modular Capsule System 3.0 & Production Tools

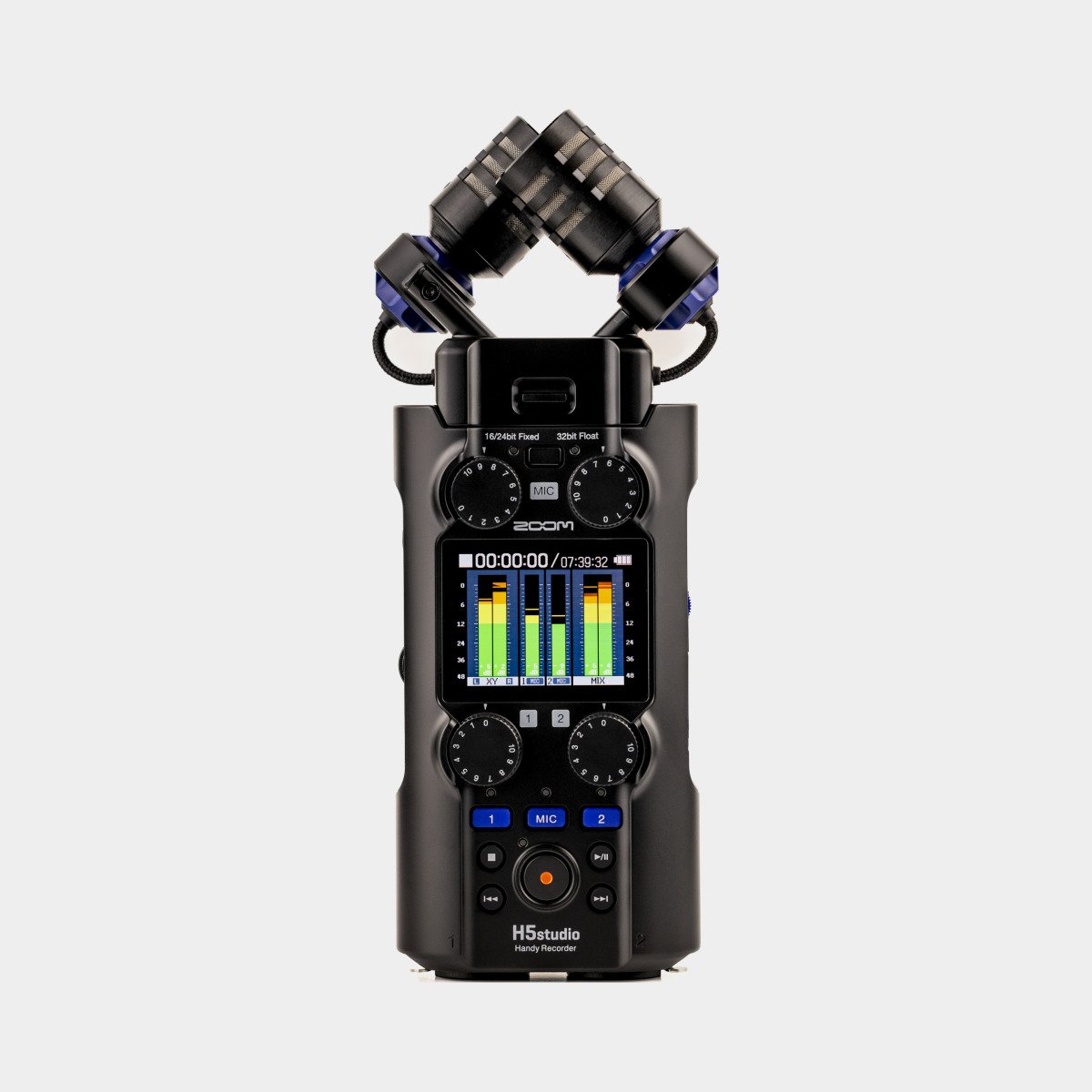

The device features the updated Capsule System 3.0, allowing you to quickly hot-swap the top microphone block for highly directional shotgun modules or extra input expanders. A bright, 2-inch full-color LCD screen lets you keep a close eye on real-time rolling waveforms and levels. When wrapped up in the studio, the USB-C port easily transforms the unit into a robust 4-in / 2-out audio interface for Mac, Windows, iOS, and Android.
Key Technical Specifications
- Audio Formats: 16/24-bit & 32-bit Float up to 192 kHz WAV
- Maximum SPL: 140 dB SPL (via built-in 19.4mm XY mics)
- Track Capacity: 4 isolated tracks + 1 stereo mix (6 tracks total)
- Preamplifier Performance: F-Series preamps (-127 dBu EIN, 132 dB dynamic range)

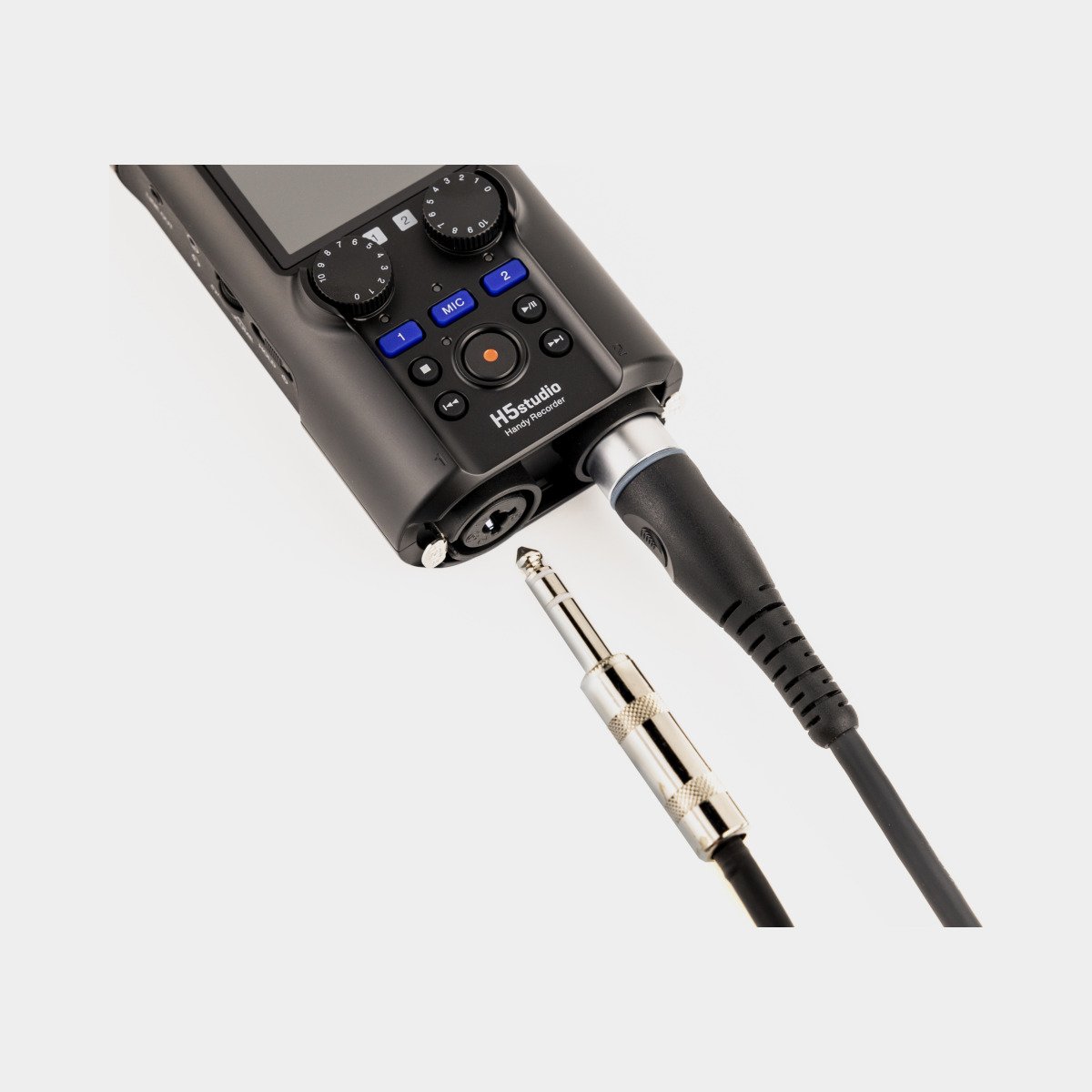

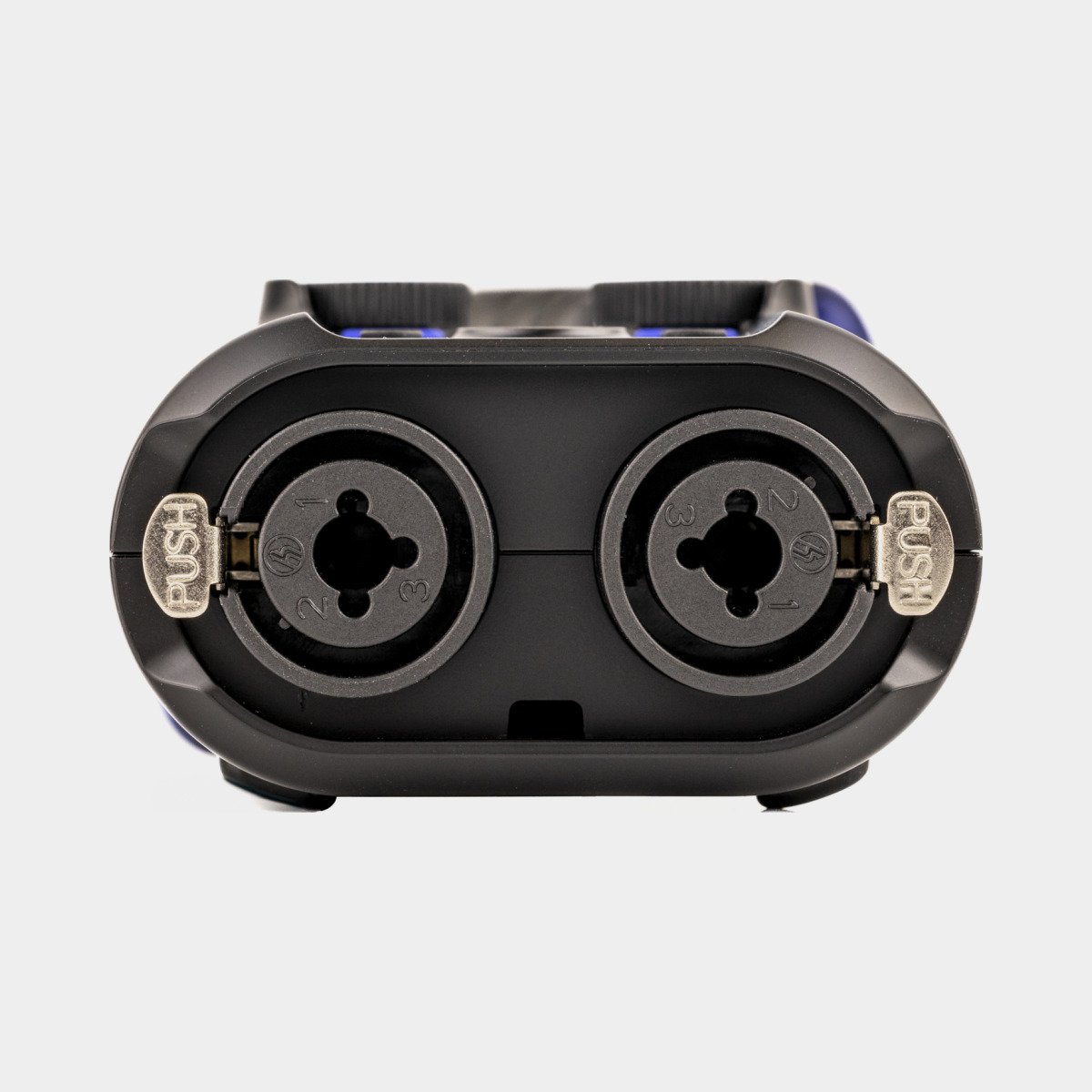

- Physical Inputs: 2 x Locking XLR/1-4″ TRS Combo Jacks, 1 x 3.5mm Stereo Mic/Line input

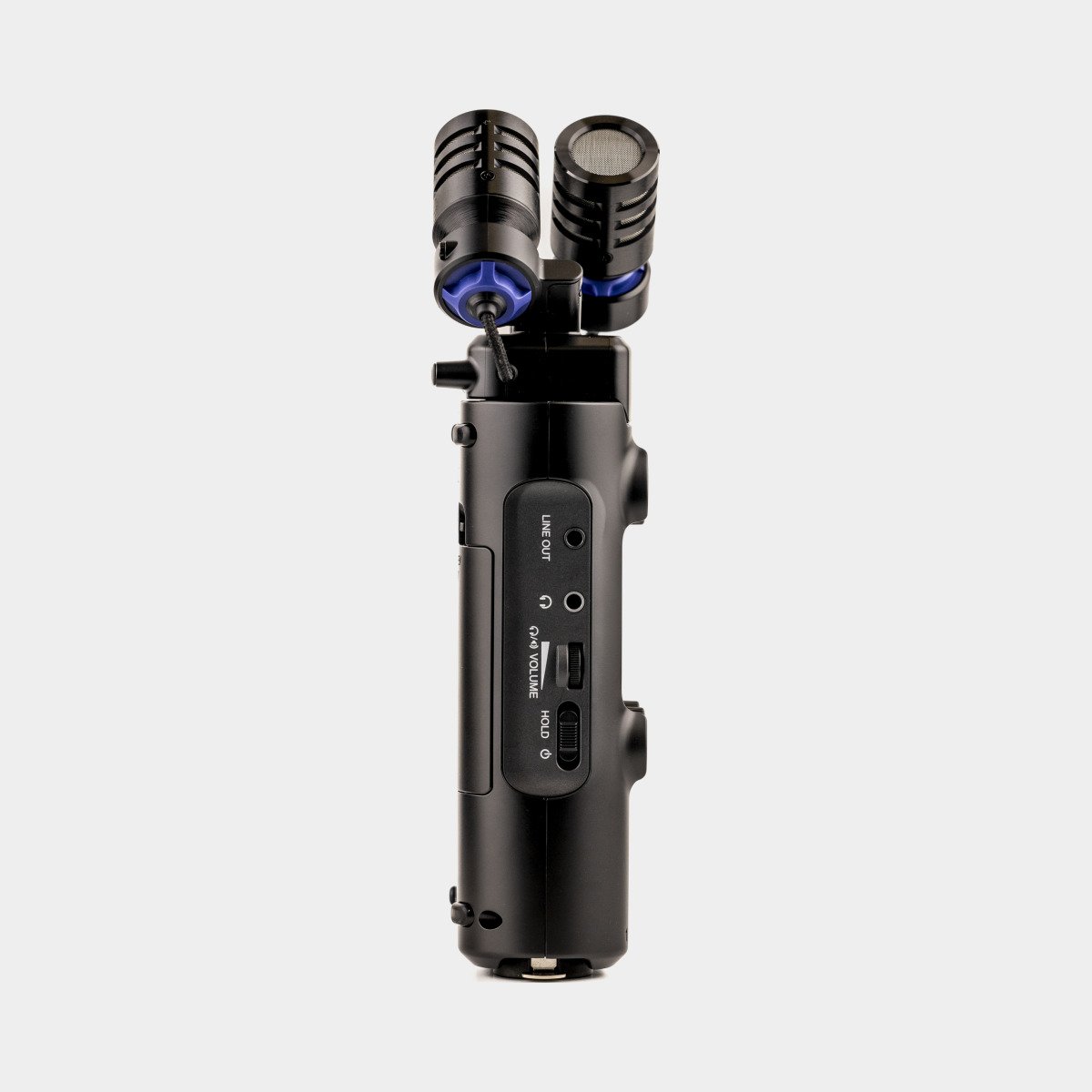

- Outputs: 1 x 3.5mm Line Out, 1 x 3.5mm Headphone Out (20 mW per channel), 250mW Mono Speaker

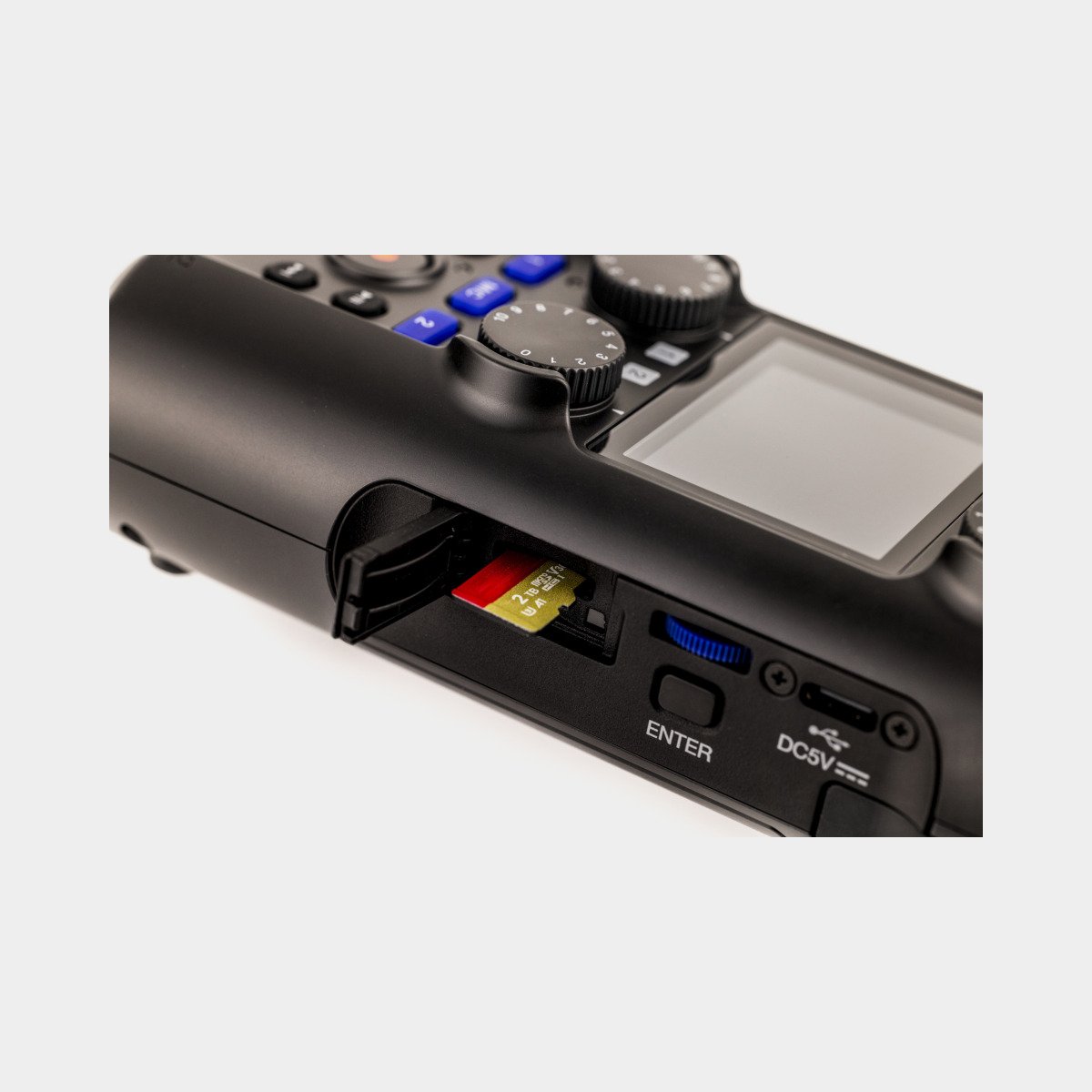

- Storage Support: microSDHC / microSDXC up to 2 TB

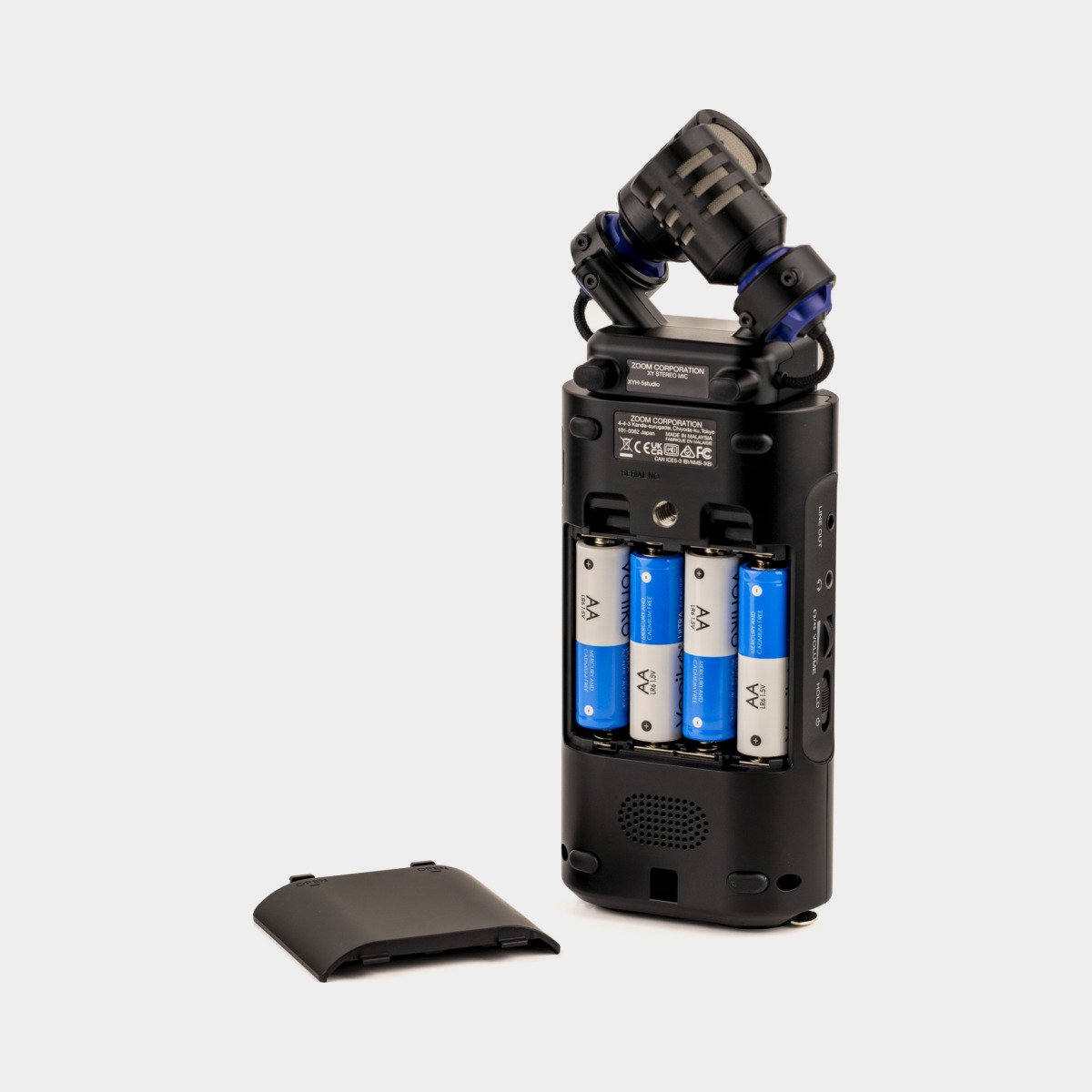

- Power Options: 4 x AA batteries (up to 15 hours life), USB-C bus power, or optional AD-17 AC adapter
