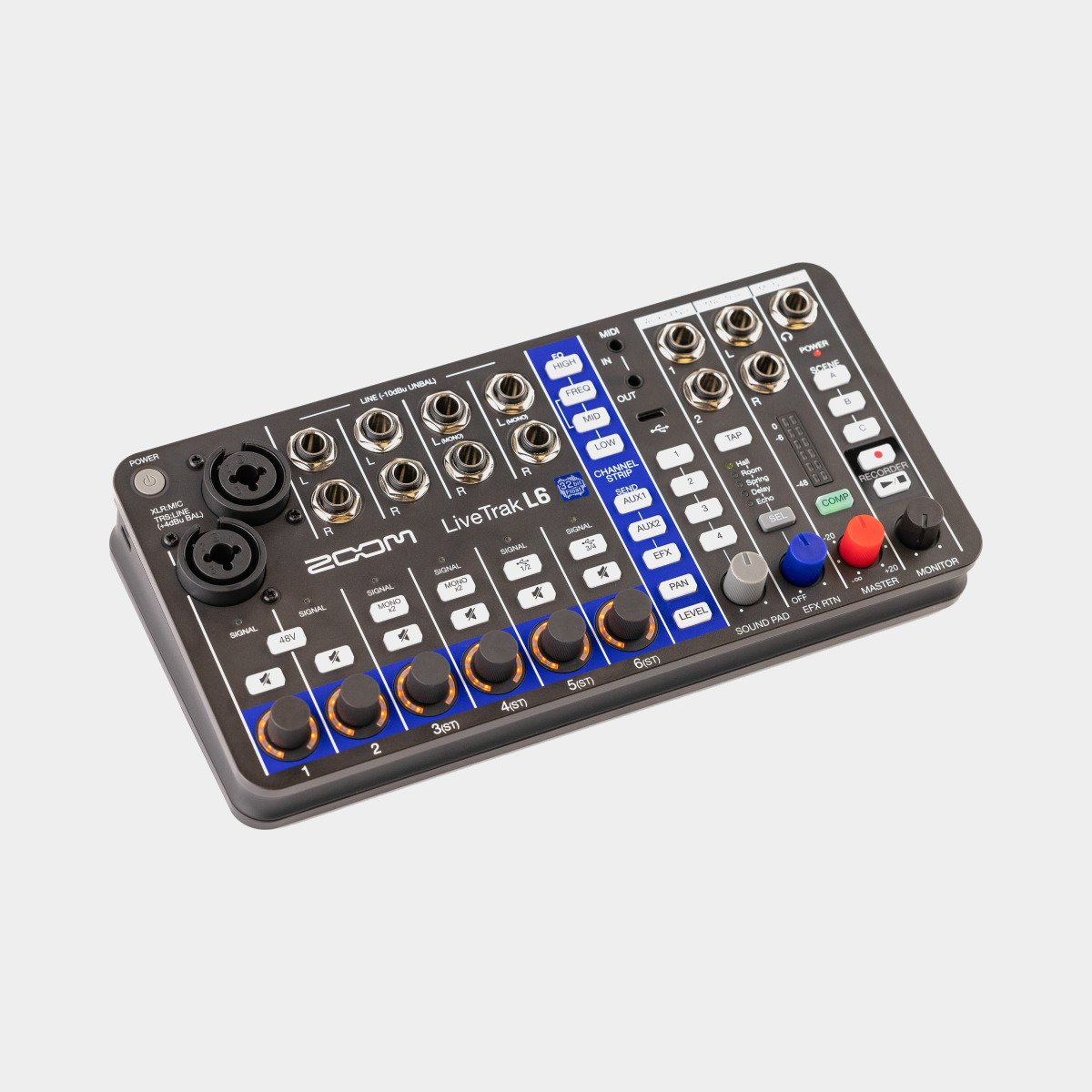

The Zoom LiveTrak L6 is Zoom’s most portable multi-track digital mixer and recorder, designed specifically for electronic musicians, synth collectors, podcasters, and hybrid live performers. Packing 10 total input channels, 32-bit float audio resolution, advanced MIDI routing, and customizable sound pads into a compact desktop frame, it serves as a powerful centerpiece for studio production and live stage setups alike.
10 Channels of Pure Audio Flexibility
The L6 accommodates a variety of gear setups with its versatile input configuration. Channels 1 and 2 feature XLR/TRS combo inputs equipped with high-quality preamps and switchable +48V phantom power for dynamic or condenser microphones. Channels 3 through 10 are organized as 4 stereo pair 1/4″ line inputs (or switchable mono inputs), making it effortless to hook up synthesizers, drum machines, grooveboxes, and playback devices without running out of stereo connections.
Clip-Free 32-Bit Float Multi-Track Recording
Never worry about setting input gains or clipping digital distortion during live improvs. The LiveTrak L6 records 12 simultaneous tracks (10 individual input stems + stereo master mix) directly onto microSD cards using 32-bit float resolution at 48 kHz. With dual A/D converters delivering near-infinite dynamic headroom, every subtle synth pad sweep and sudden drum transient is captured cleanly without clipping.
Hands-On Channel Controls, Onboard FX & Sound Pads
Per-channel controls include a 3-band EQ with sweepable mid frequencies, pan adjustment, auxiliary sends, and dedicated channel mute buttons. The L6 features a studio-quality internal send effects engine with customizable delay, reverb, and chorus algorithms. Additionally, 4 customizable Sound Pads let you instantly trigger sound effects, backing tracks, or live samples during performances or podcast broadcasts.
Full MIDI Integration & 10-In / 4-Out USB Interface
Designed to integrate directly into synth rigs, the L6 includes 3.5mm MIDI In and Out ports to pass clock, start/stop commands, and control parameters between external hardware gear and your DAW. When connected to a Mac, PC, iOS, or Android device via USB-C, it doubles as a comprehensive 10-in / 4-out USB audio interface, allowing you to record individual stems directly into your software while routing computer playback tracks back through the mixer channels.
Key Technical Specifications
- Total Mixer Channels: 10 Channels (2 Mono Mic/Line + 4 Stereo Line Pairs)
- Simultaneous Recording Tracks: 12 Tracks (10 Stems + Stereo Master)
- Audio Recording Format: 32-bit Float / 48 kHz WAV (BWF compliant)
- Analog Inputs: 2 x XLR-1/4″ TRS Combo (Mic/Line), 8 x 1/4″ TS Line Inputs (4 Stereo Pairs)
- Analog Outputs: 2 x 1/4″ TRS Main Outputs, 2 x 1/4″ TRS Aux Outputs, 1 x 3.5mm Headphone Output
- MIDI Hardware I/O: 2 x 3.5mm TRS MIDI jacks (In / Out)
- Sound Pads: 4 Programmable Sample Pads with dedicated volume knob
- Storage Support: microSDHC / microSDXC cards up to 1 TB
- Power Configurations: 4 x AA batteries, USB-C bus power, or AD-17 AC adapter
