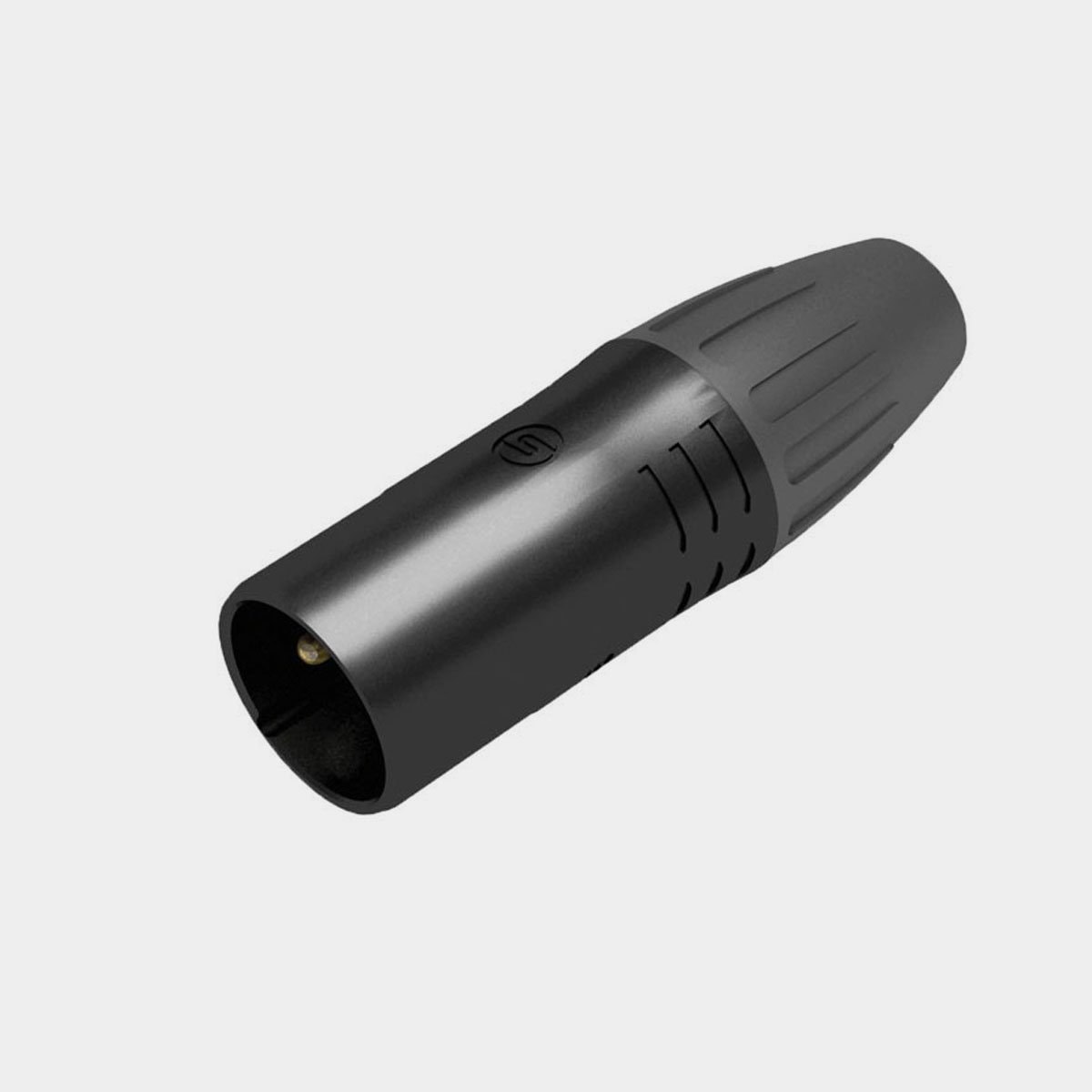

The Seetronic SCWM3-B is a three-pin male XLR cable connector. Build or service compatible audio connections with a connector matched to your cable and equipment. The stated contact format and construction help you select the correct part for stage, studio or installed systems. Core features include IP65-rated W-series design, Gold-plated contacts and Black housing.
The connector provides a defined termination point for a compatible audio cable or equipment panel. Its contact format, gender and mounting style determine the connection it makes, while the housing and contact material support a dependable mechanical and electrical interface. The specifications below identify the particular version for cable assembly, replacement or installation work.
The cable-mount format allows a lead to be assembled around the required length and application. The termination and strain-relief arrangement help support the cable at the connector, reducing the amount of mechanical pull carried directly by the electrical joints. Cable diameter and conductor compatibility remain part of choosing the correct part.
Features:
- IP65-rated W-series design.
- Gold-plated contacts.
- Black housing.
- For 5–8 mm cable outer diameters.
- Cable-bending protection sleeve.
- Connection Type: XLR.
- Capacitance between contacts: ≤ 4 pF.
- Contact resistance: ≤ 3 mΩ.
- Dielectric strength: 1.5 kV DC.
- Insulation resistance: > 10 GΩ (initial).
- Rated current per contact: 16 A.
- Rated voltage: < 50 V.
- Cable O.D.: 5~8 mm.
- Service life: > 1000 mating cycles.
- Cable size: Max.2.5 mm² Max.14 AWG.
- Locking device: Latch lock.
- Contacts: Cu alloy.
- Contact plating: Au.
- Housing: Zinc alloy.
- Housing plating: Black plating.
- Strain relief: POM.
- Flame-retardant grade: UL 94 HB.
- Protection class: IP65.
- Temperature range: -30°C ~ +80°C.
